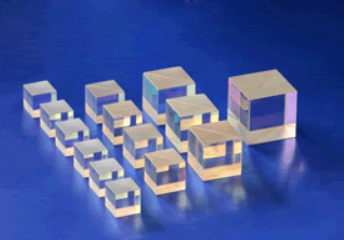

Polarizing Cube Beamsplitters offer a transmission of greater than 90% for P-polarized light and a reflection efficiency of greater than 99% for S-Polarized light across the entire design wavelength range.Each beamsplitter consists of a pair of precision high tolerance right angle prisms cemented together with a dielectric coating on the hypotenuse of one of the prisms.An anti-reflection (AR) coating has been applied to each face of the beamsplitter to achieve less than 1% reflection per surface.





Specifications
Material	BK7
Dimension Tolerance	±0.2mm
Extinction Ratio	>100:1 for broadband, >500:1 for narrow band
Surface Quality	60/40 scratch and dig
Clear Aperture	>90%
Beam Deviation	<3 arc minutes
Flatness	λ/4@632.8nm per 25mm
Principal Transmittance	Narrow: Tp>95% and Ts<1%
	Broad: Tp>90% and Ts<1%
Principal Reflectance	Narrow: Rs>99% and Rp<5%
	Broad: Rs>99% and Rp<10%
Coating	Polarization beamsplitter coating on hypotenuse face
	AR coating on all input and output faces
Damage Threshold	>500mJ/cm2, 20ns, 20Hz, @1064nm
