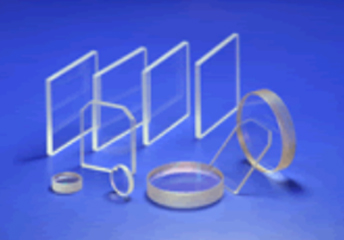

标准分光平片
经济的价格，标准的50/50分光镜片，专用于450-1200nm范围内的非偏振光学。
• 材质：BK7
• 透反比：50/50±5％，T =（Ts + Tp）/ 2，R =（Rs + Rp）/ 2
• 支持客制规格
| Specifications | |
| Material | BK7 Grade A |
| Dimension Tolerance | +0.0/-0.2mm |
| Thickness Tolerance | ±0.2mm |
| Clear Aperture | >90% |
| Parallelism | <1 arc minute |
| Surface Quality | 60/40 |
| Flatness | <λ/4@633nm per 25mm |
| Chamfer | Protected <0.5mmx45deg |
| T/R | 50/50±5%, for natural light T=(Ts+Tp)/2, R=(Rs+Rp)/2 |
| Coating(AOI=45deg) | S1: Partial reflectance coating |
| S2: AR coating | |
| Damage Threshold | >1J/cm2, 20ns, 20Hz, @1064nm |
