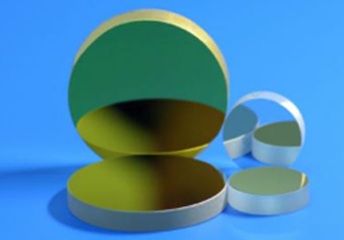

镀金膜反射镜
保护金提供优异的宽带红外高反射率，是理想的用于IR波长范围。
•一面镀金属反射膜，反面细磨或检测抛光
•保护金：Ravg> 98％@ 2000-12000nm
•符合RoHS
| Specifications | |
| Material | BK7 |
| Dimension Tolerance | +0.0/-0.2mm |
| Thickness Tolerance | ±0.2mm |
| Clear Aperture | >90% |
| Flatness | Refer to below list |
| Surface Quality | 60/40 scratch and dig |
| Coating | Metal coating on one surface, rear surface ground or inspection polished |
| Protected Gold: Ravg>98%@2000-12000nm | |
| Damage Threshold | >1J/cm2, 20ns, 20Hz, @1064nm |
